BMD – Plug Gauge DIATEST
Diatest Small Hole Gauge Pin Gauge
Website：https://www.diatest.com/en/
Specifications

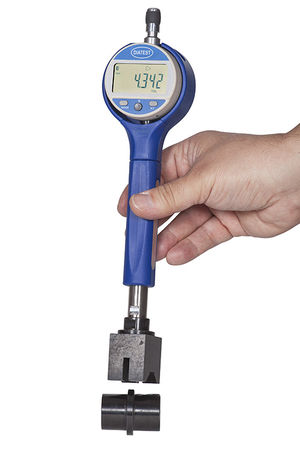

Easy-to-use, self-indicating and self-centering bore gauge for the measurement of inner- and outer diameter, with highest precision and absolute accurate results.
Field of application is the production of high-precision bores within a standard range of Ø 2.0 mm (T-BMD) up to 270 mm in serial production.
Plug Gauge BMD allows:
Static and dynamic measurement
Detection of dimensional deviations and shape defects
As a hand tool in bores directly at the machine
Fitting in measuring fixtures and machines
A wide selection of basic types in the standard program, supplemented by useful accessories, ensures that nearly all bores encountered in current practice can be measured precisely. Its flexible platform allows a wide area of application:
Standard- und Through bores: from 2.0 to 270 mm,
Measurement of Blind Bores(Flat-Bottom): from 2,0 (T-BMD-FB) to 150 mm,
Measurement of O.D.: from 20 to 100 mm,
Multiplane plug gauges: from 21 mm,
Internal gear gauges: from 10 mm cylinder diameter
3-Point Measurement: from 8.0 to 100 mm,
For very small diameters from 2.0 mm to 3.0 mm
Measurement of parallel distances: from 1.0 (T-BMD-PA) to 30 mm
Special sizes,shapes and models, e. g. tapered bores
Extension or limitations of the measuring range, adjustment of the measuring pressure, air supply,…
Repeatability:
2-point design =< 1 µm
3-point design =< 2 µm
The selection of gauging contact material depends on composition and design of the work piece:
Carbide,
Hard chrome,
Ceramic,
Ruby,
Plastic,
Diamond.
